Sasandu TX

Open Source Kit: Not available as full kit, read below for details.

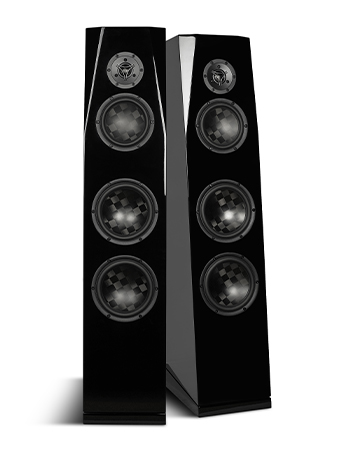

The SASANDU TX is a large 3-way floor standing speaker showcasing the SATORI TW29TXN-B-8 advanced TeXtreme® dome tweeter known for it’s extreme resolution and dynamics yet relaxed presentation. The midrange is covered by the 6½″ SATORI MW16TX-4 TeXtreme® cone midwoofer housed in a dedicated large sealed midrange chamber for low compression and wonderful open midrange. Each speaker is solidly anchored in the lower octaves by two 7½″ SATORI MW19TX-8 for a deep, tight and satisfyingly musical bass.

  • Large 3-way floor standing speaker
  • Advanced TeXtreme High End SATORI drivers
  • Elegantly inclined cabinet for time alignment
  • Faceted baffle and optimized tweeter position for reduced diffraction
  • Slanted internal partition for reduced of standing waves
  • Stylish removable plinth for secure footing
  • Strategic internal bracing and dampening
  • Large low noise rear firing vent



Open Source Kit

The SASANDU TX is an open source kit meaning the speaker is fully developed and documented by SB Acoustics and you are free to use the plans. The cabinet design is shared with the SASANDU and only the crossover of this open source kit will need to be sourced and build as DIY.

Categories: ,

Specs

  • Frequency Range: 32 – 32000 Hz
  • Sensitivity ( 2.83V / 1m ): 89 dB
  • Nominal Impedance: 4Ω
  • Max SPL: 108 dB
  • Recommended Amplifier: 100 – 200 W
  • Crossover Frequency: 400/ 2800 Hz
  • Enclosure Type: Bass reflex (woofer), sealed (midrange)
  • Port tuning Frequency: 32 Hz
  • Drive Units SATORI TW29TXN-B-8, 6½″ inch SATORI MW16TX-4 & 7½″ SATORI MW19TX-8
