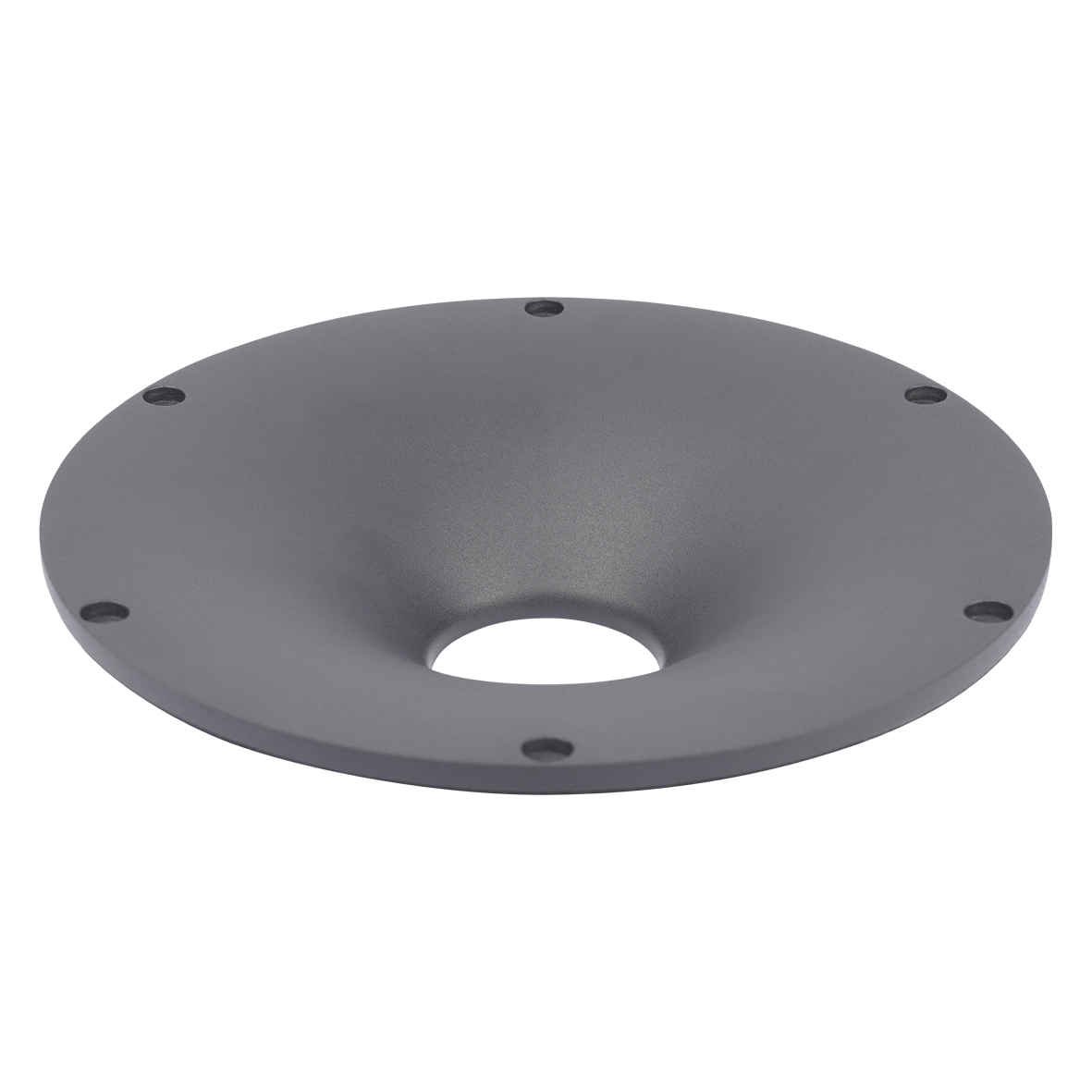

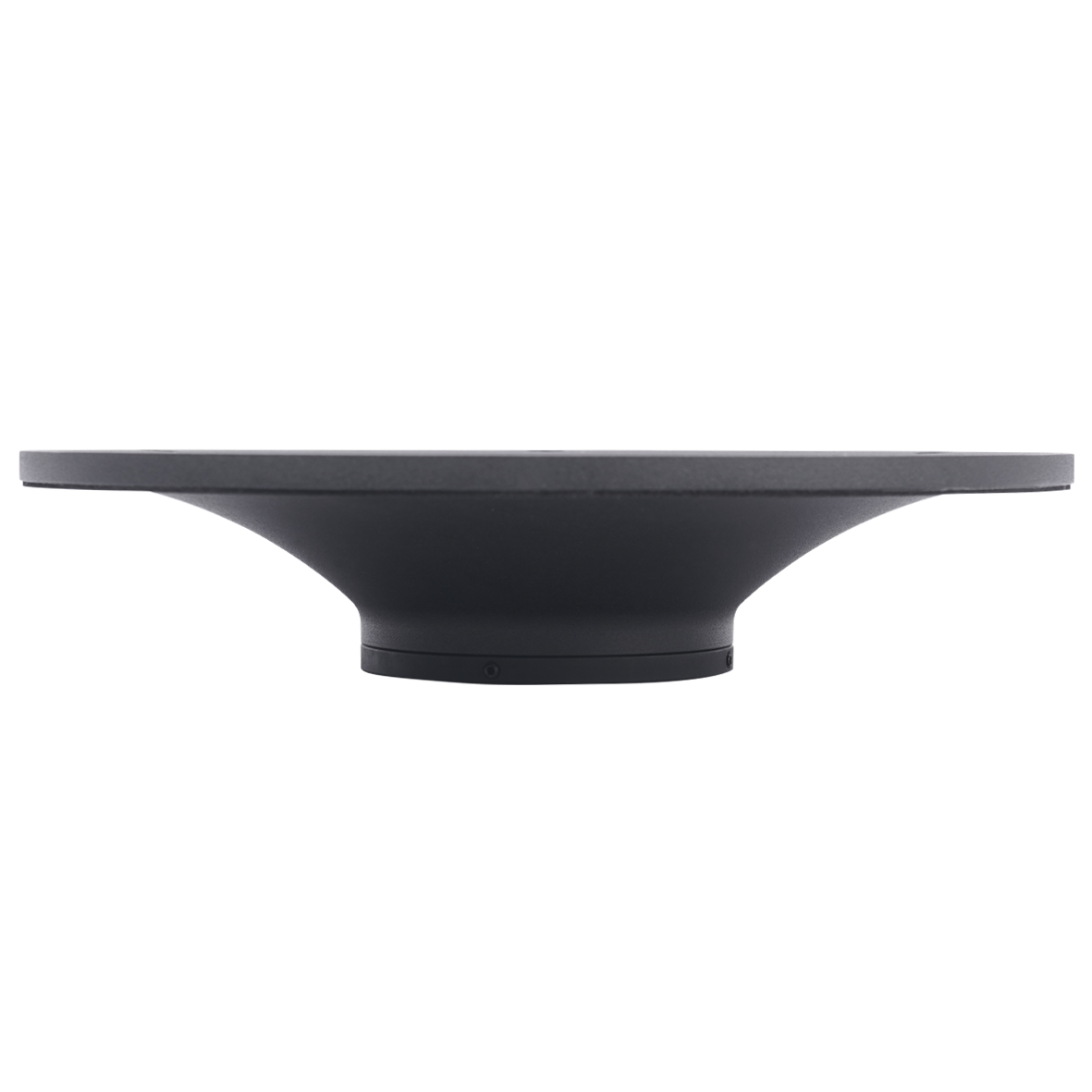

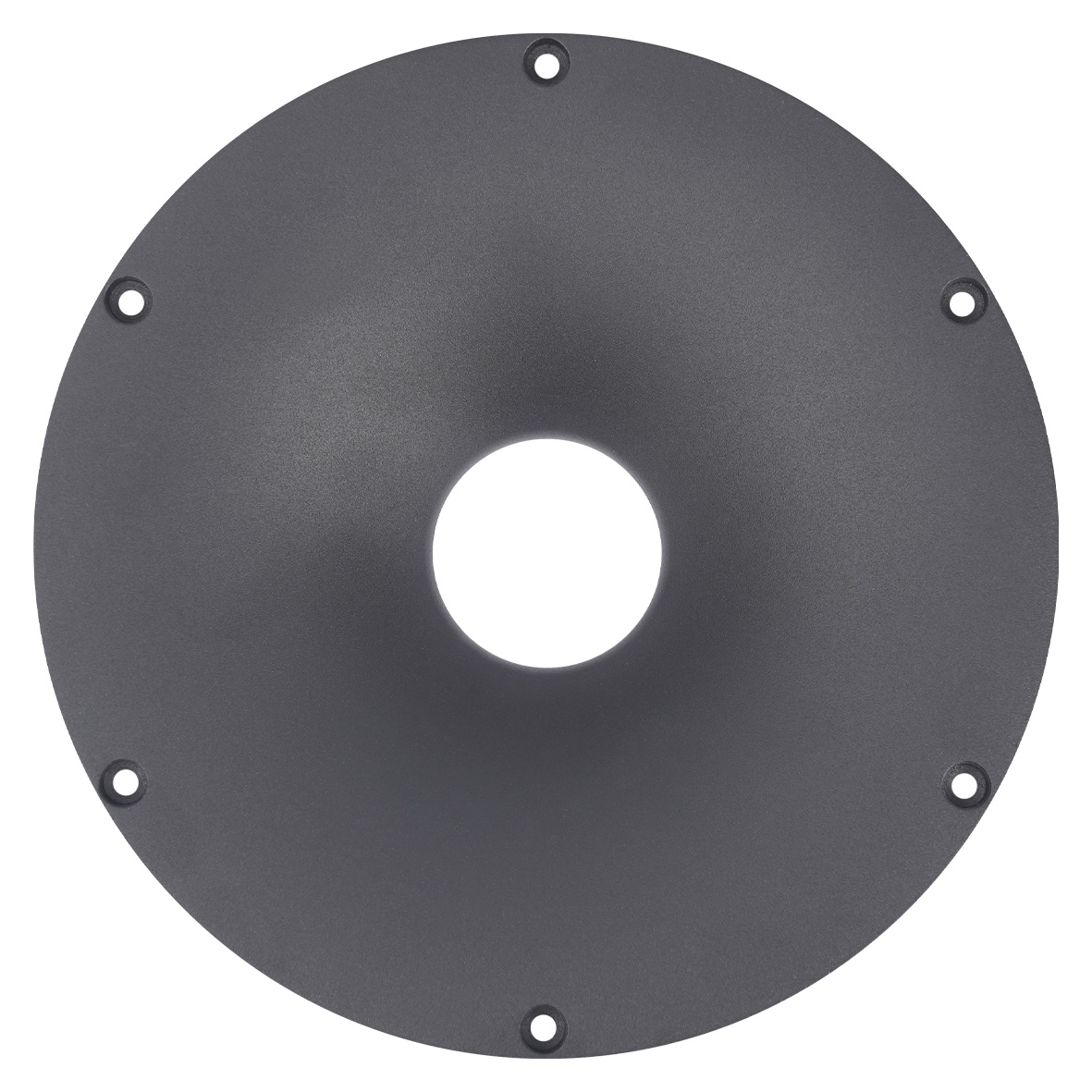

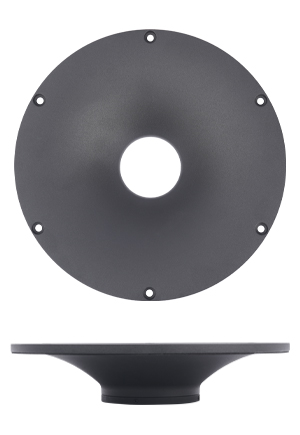

SATORI WG29-187
Features

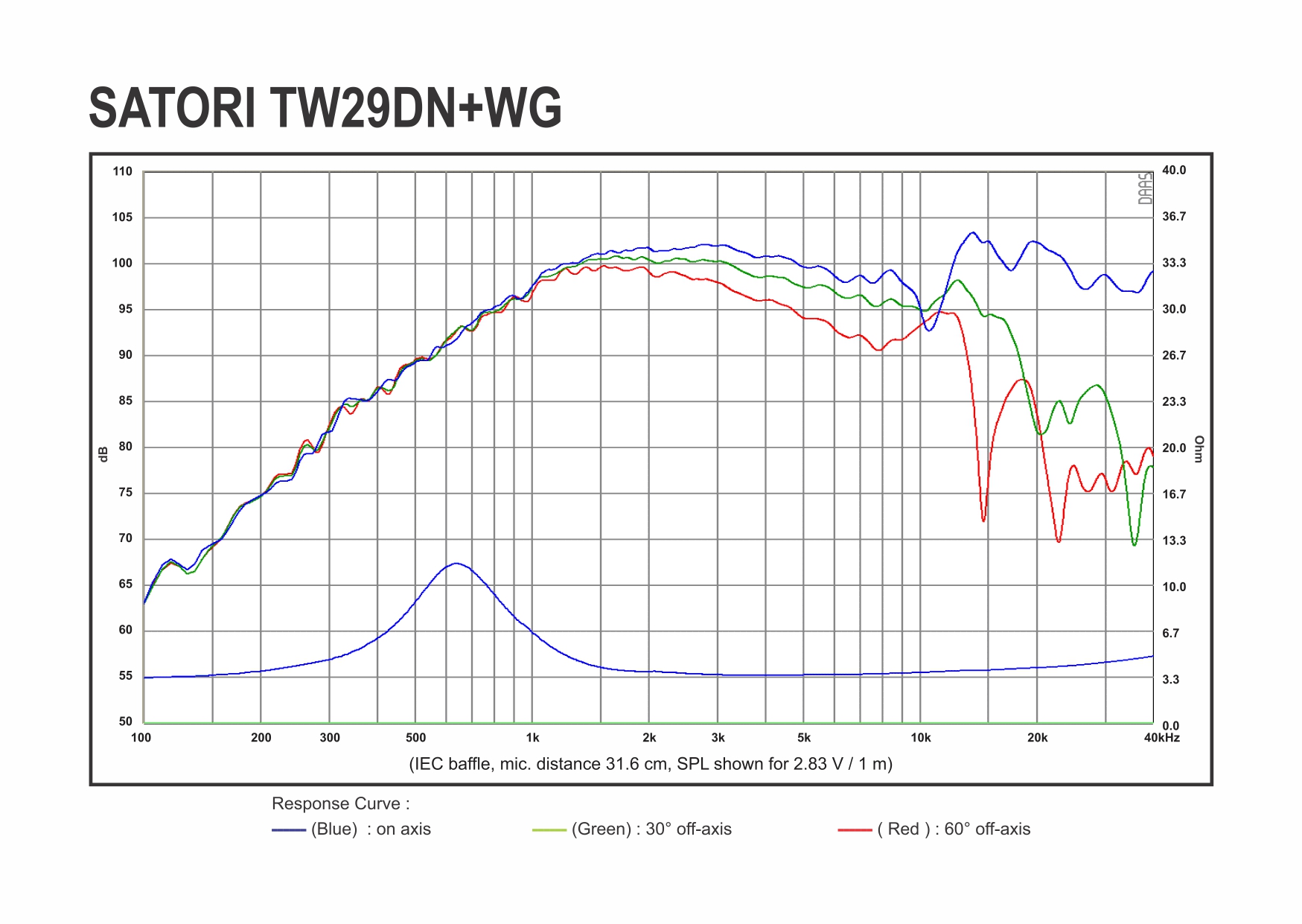

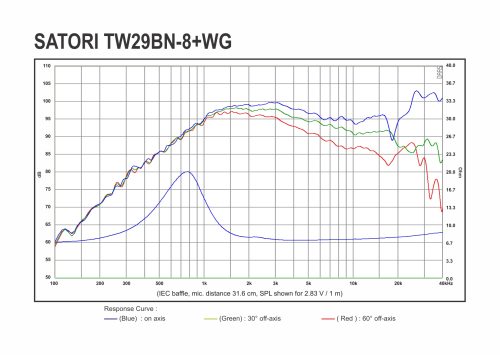

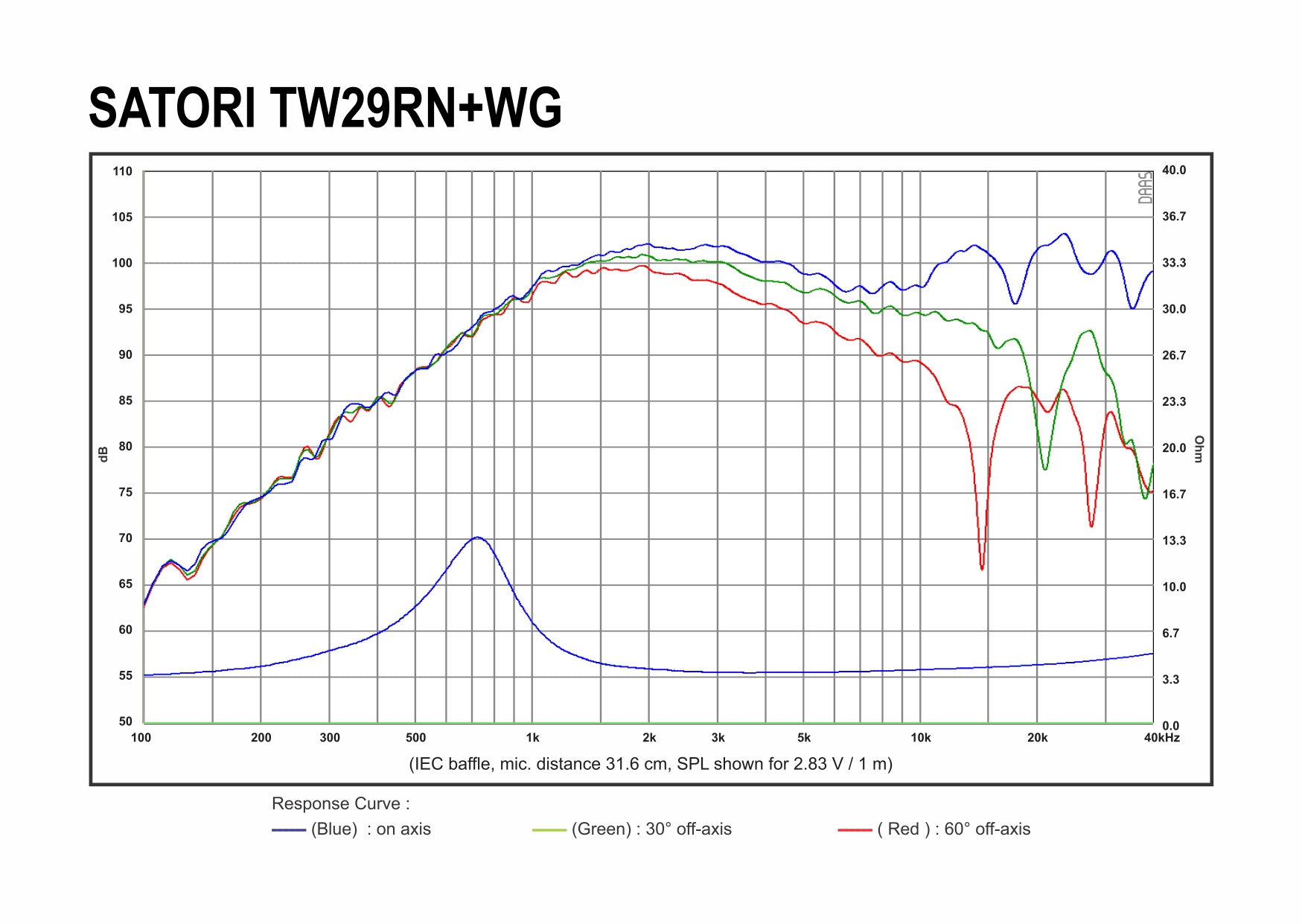

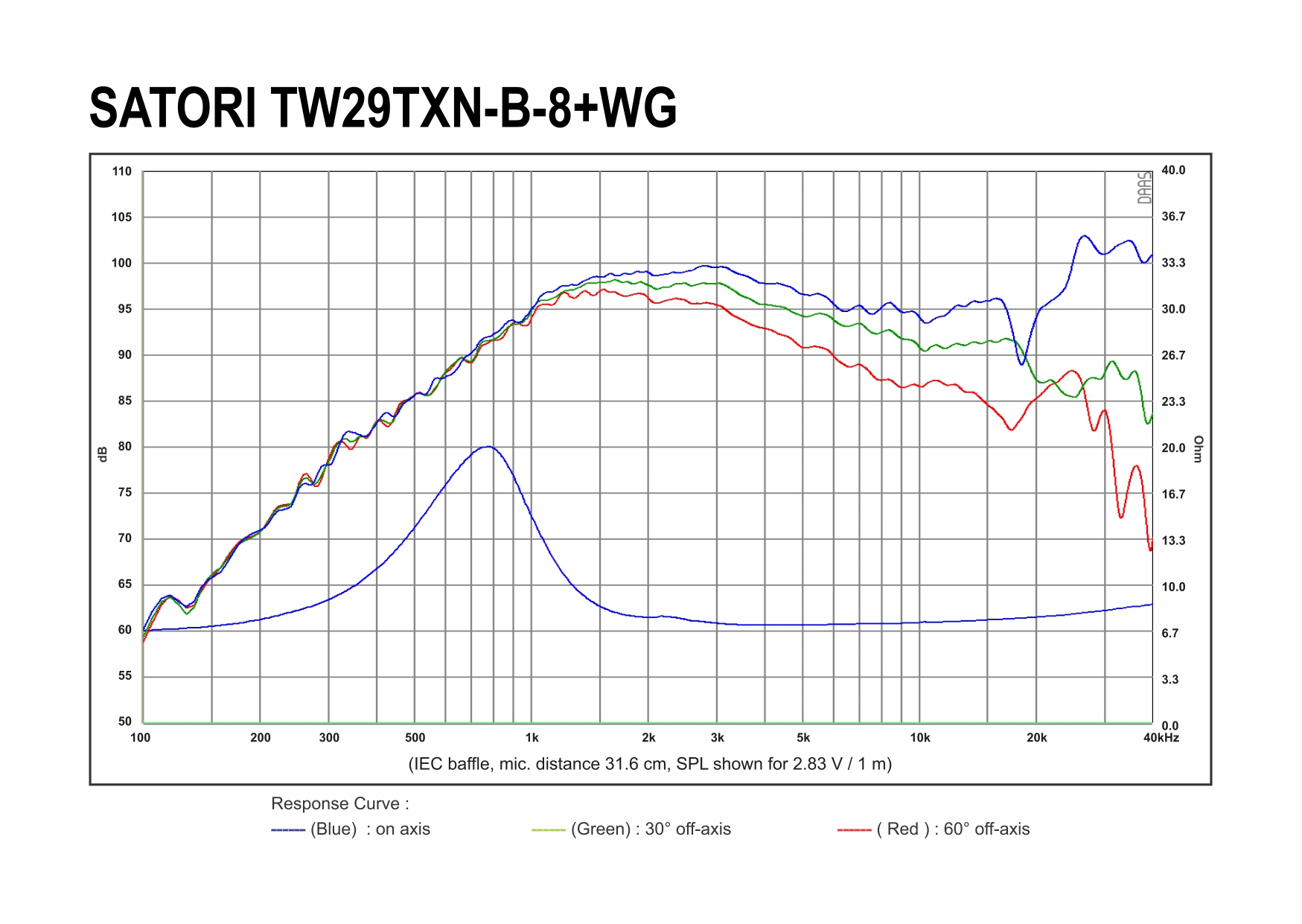

- Suits all Satori TW29 models
- Die cast aluminum waveguide
- Screwless driver mounting

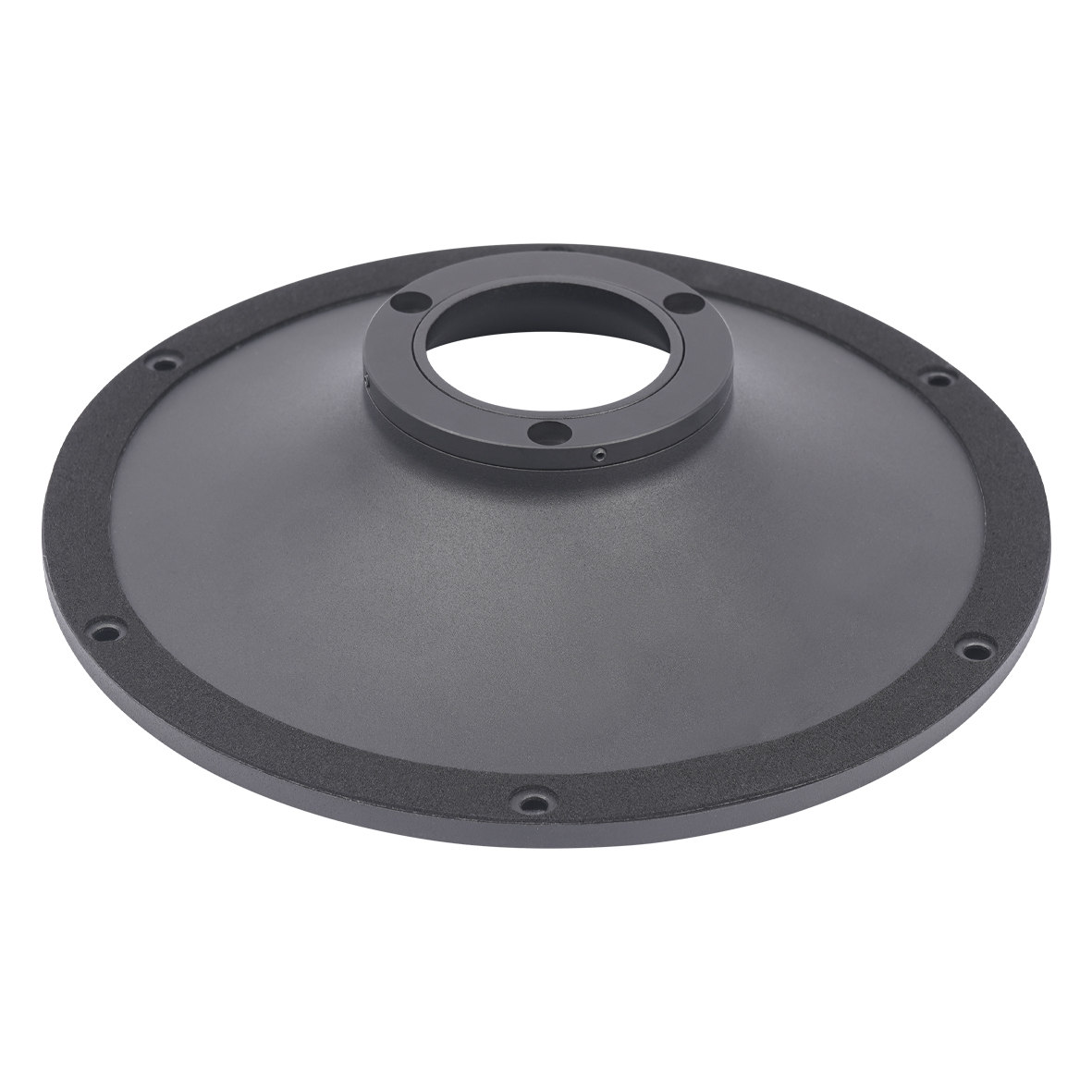

- Adapter ring included

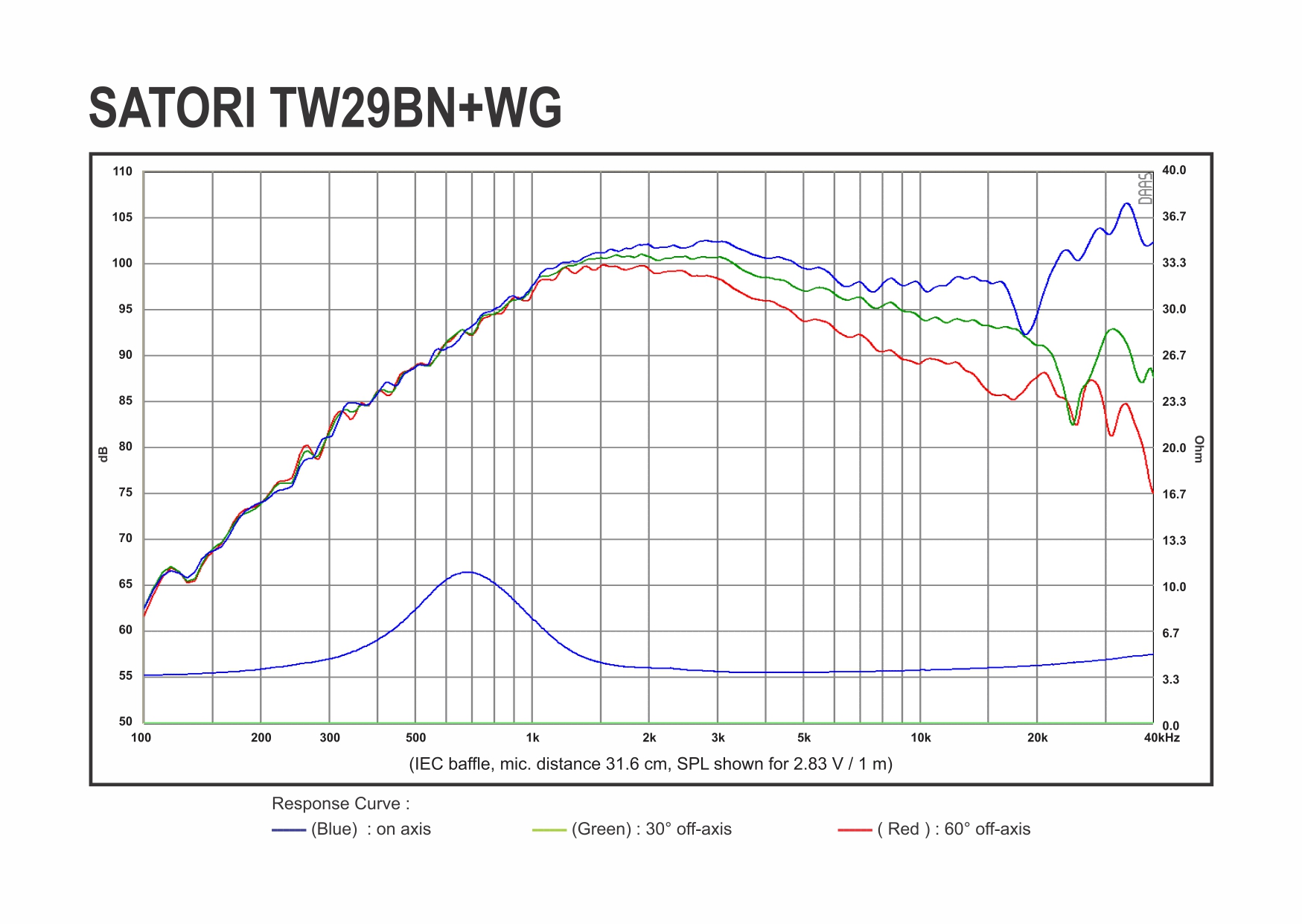

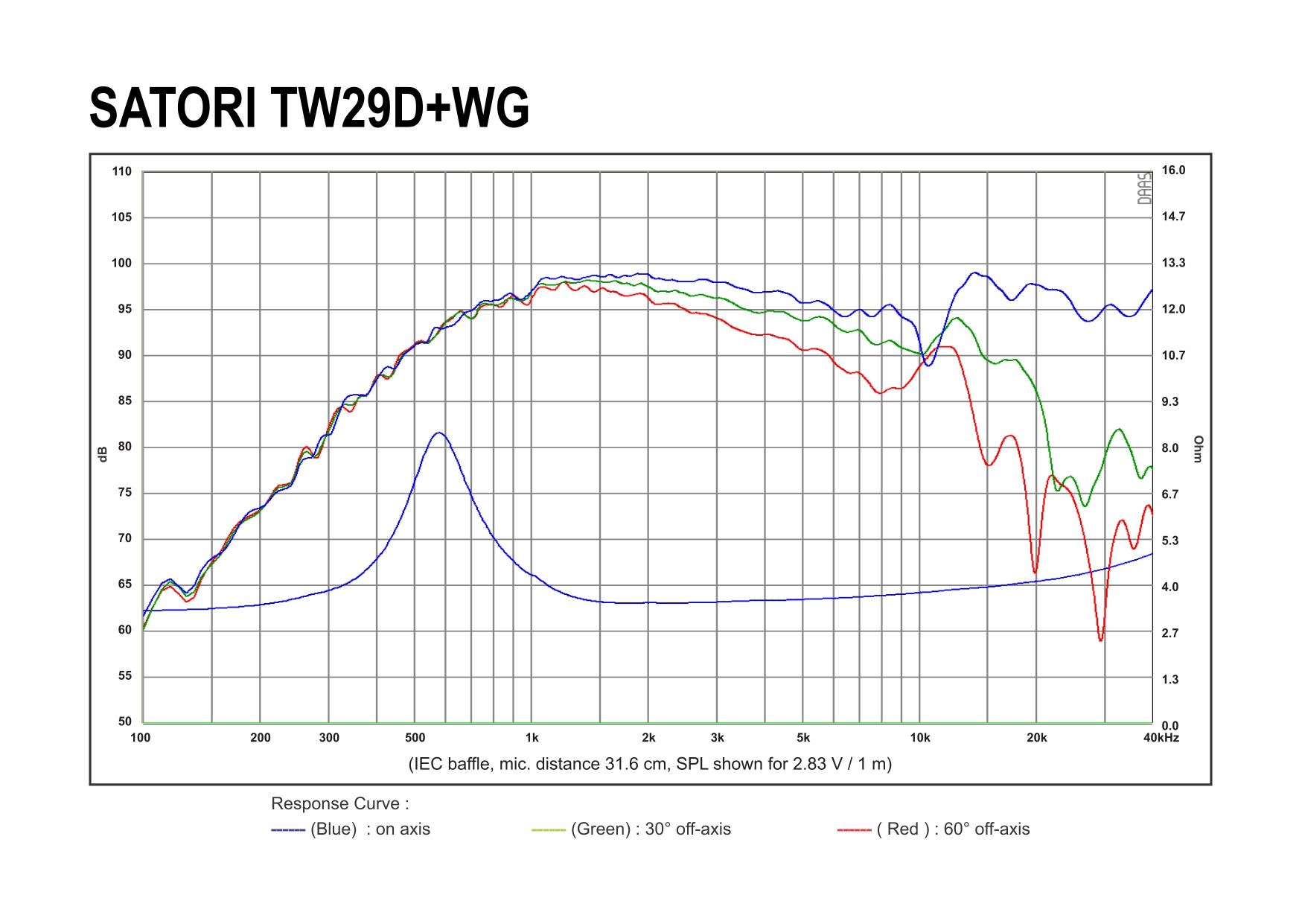

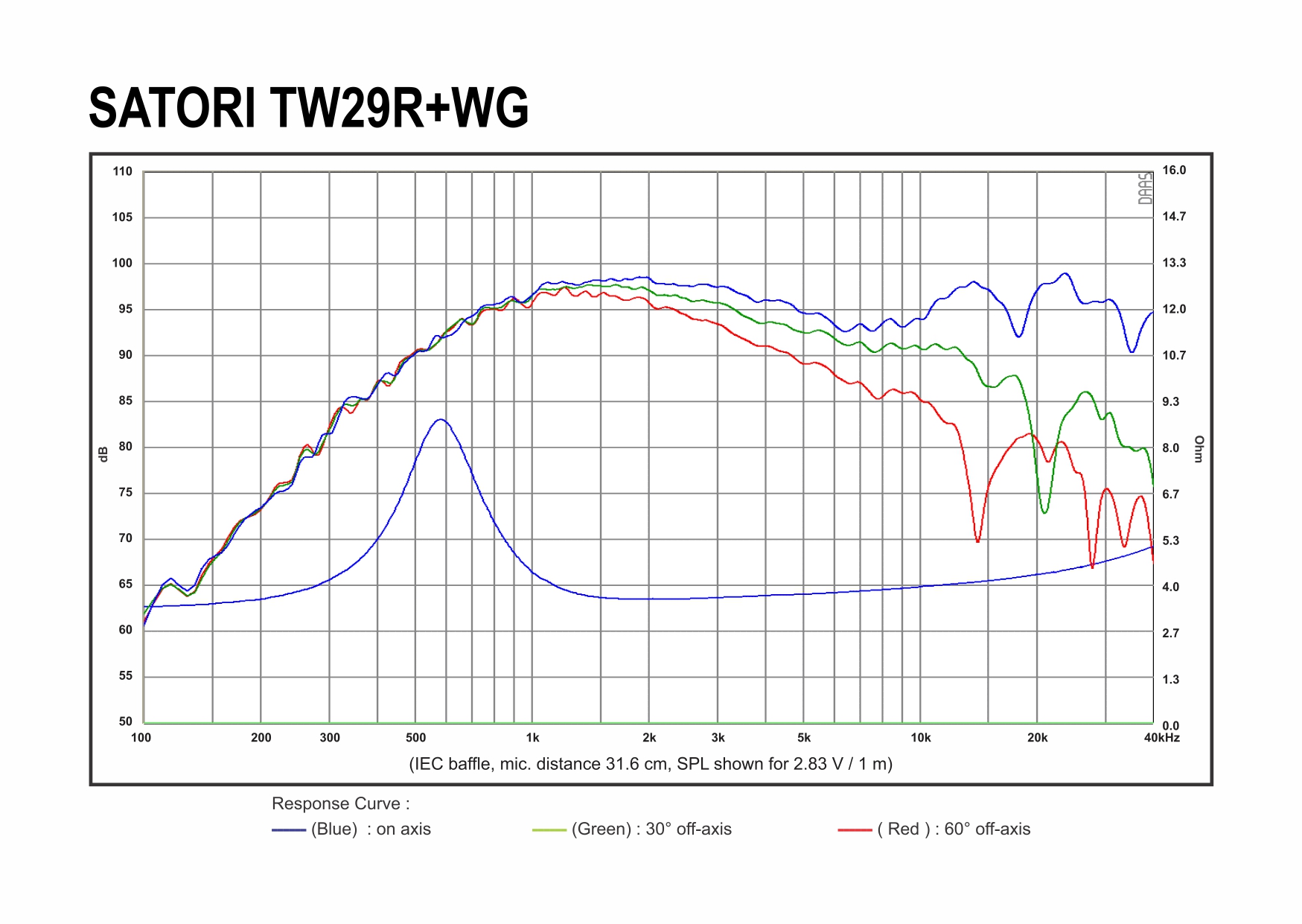

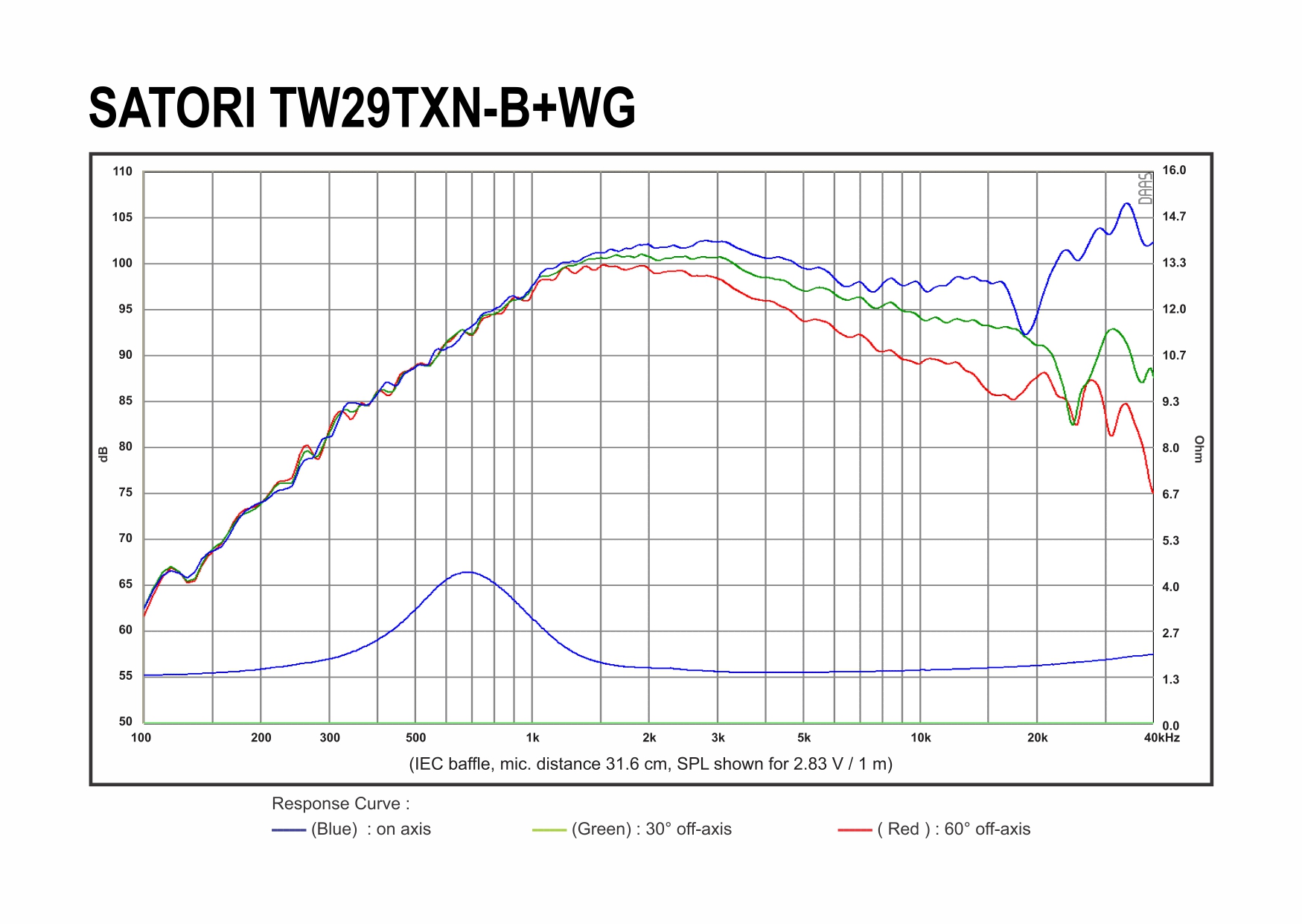

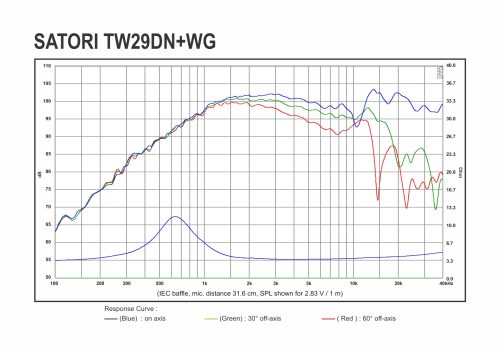

- Smooth controlled directivity

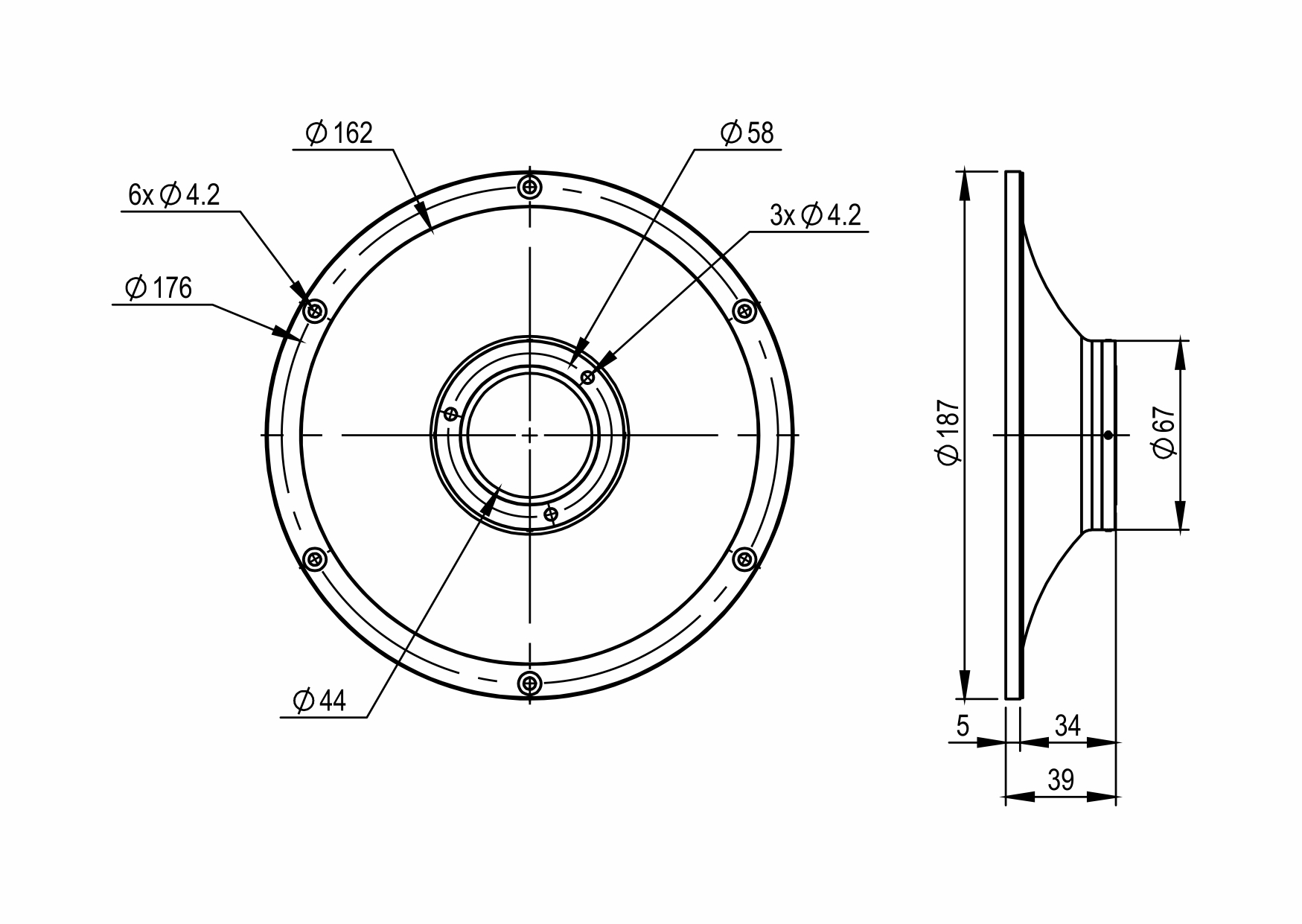

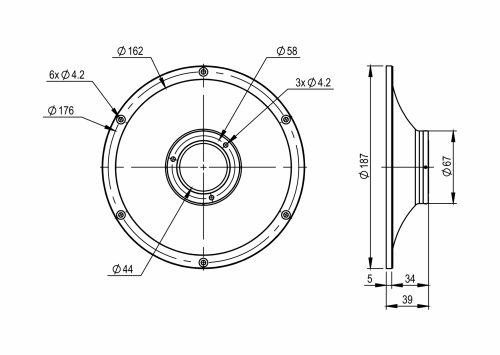

Dimensions & Weight
- Waveguide material: Aluminum die cast
- Waveguide finish: Black Matte
- Overall diameter: 187 mm (7.36 inch)
- Overall height: 39 mm (1.53 inch)
- Net weight: 0.49 kg (1.08 lb)
- Gross weight: 0.6 kg (1.32 lb)
- Shipping box: 199 x 190 x 50 mm (7.83 x 7.48 x 1.97 inch)
Mounting Instructions
- Undo the screws on the faceplate (2.5 mm Allen key)
- Slowly and carefully remove the faceplate (excess glue at the edge of the diaphragm may stick to the back of the faceplate)
- Use the same screws to mount the adapter ring on the tweeter
- Insert the waveguide to the adapter ring
- Fasten the four set screws (1.3 mm Allen key)
