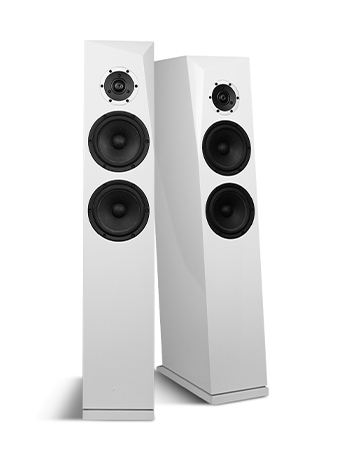

The RINJANI is a 2½-way floor standing speaker kit built with top-line SATORI drivers. Each speaker is equipped with two SATORI 6½” Papyrus cone midwoofers and the famous SATORI TW29R Ring-dome tweeter.

Mount Rinjani is a breathtakingly beautiful active volcano on the island of lombok, Indonesia. The volcano is know to display dramatic eruptions with plumes of lava and ash. The RINJANI kit is designed to deliver transparent and dynamic sound reproduction.

The RINJANI’s faceted baffle is specially designed to reduce high frequency diffraction and yields superb imaging qualities. A further 7° reclined cabinet ensures time alignment resulting in sublime staging and pin point placement in instruments. The quality crossover lives in it’s own sealed chamber in the bottom of the speaker with a slanted divider to diminish standing waves.

The cabinet is masterfully crafted from 18 mm MDF with internal bracing to distribute cabinet vibrations and lower sound coloration. Unwanted reflections are minimized by wedge shaped inner rear walls. The RINJANI also has dual ports at the back to distribute port resonance evenly and lower compression.

For a smaller speaker with similar design goals look to the ARA and ARA Be which are the over achieving siblings of the great RINJANI.

Please see Open Source Kits for TeXtreme editions.

Categories: ,


  • Frequency range: 42-25000 Hz +/-3dB
  • Sensitivity ( 2.83V/1m ): 89 dB
  • Nominal impedance: 4 Ω
  • Max SPL: 107 dB
  • Recommended amplifier: 50-200 W
  • Cross-over frequency: 3000 Hz
  • Enclosure type: Bass reflex
  • Port tuning frequency: 35.5 Hz
  • Driver units: SATORI TW29R & 2 x 6 1/2” SATORI MW16P-8
  • Cabinet material: 18 mm MDF
  • Speaker dimension (HxWxD): 1010 x 190 x 464 mm ( 39.72 x 7.48 x 18.27 inch )
  • Net weight: Cabinet only 18.49 kg ( 40.76 lb ), full assy 22.42 kg ( 49.43 lb )


  • White Satin
  • Black Satin
  • White High Gloss
  • Black High Gloss
