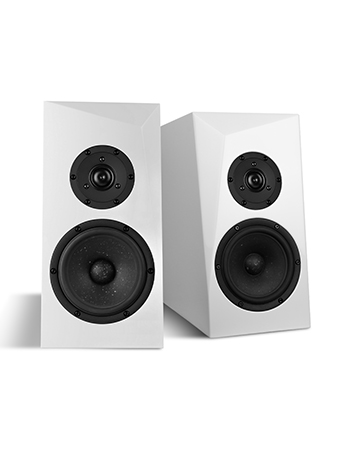

ARA, the smaller brother of RINJANI, reflecting the same design concept. The ARA is a 2-way stand mount speaker kit based on the excellent SATORI drivers 6½” MW16P Papyrus cone midwoofers and the famous SATORI TW29R Ring-dome tweeter.

ARA is the highest point of Komodo Island in Indonesia and particularly notable as the habitat of the spectacular and mythical komodo dragons. The ARA kit is designed to deliver top level transparent and dynamic sound reproduction.

The ARA’s faceted baffle is specially designed to reduce high frequency diffraction and yield superb imaging qualities. A further 7° reclined cabinet ensures time alignment resulting in sublime staging and pin point placement of instruments.

The cabinet is masterfully crafted from 18 mm MDF with internal bracing to distribute cabinet vibrations and lower sound coloration. Unwanted reflections are minimized by wedge shaped inner rear walls. The ARA has a large rear firing port and high quality speaker terminals on a solid aluminium binding post plate.

For a larger speaker with similar design goals look to the RINJANI and RINJANI Be which are the larger floor standing siblings of the ARA.

Please see Open Source Kits for TeXtreme editions.

Categories: ,


  • Frequency range: 49-25000 Hz +/-3dB
  • Sensitivity ( 2.83V/1m ): 87 dB
  • Nominal impedance: 4 Ω
  • Max SPL: 105 dB
  • Recommended amplifier: 40-150 W
  • Cross-over frequency: 3000 Hz
  • Enclosure type: Bass reflex
  • Port tuning frequency: 36.5 Hz
  • Driver units: SATORI TW29R-B & 6 ½” SATORI MW16P-4
  • Cabinet material: 18 mm MDF
  • Speaker dimension (HxWxD): 391 x 190 x 388 mm ( 15.4 x 7.48 x 15.27 inch )
  • Net weight: Cabinet only 8.06 kg ( 17.77 lb ), full assy 9.6 kg ( 21.16 lb )


  • White Satin
  • Black Satin
  • White High Gloss
  • Black High Gloss
  • Orange High Gloss
  • Red High Gloss
