Tifa 8

Open Source Kit: Not available as full kit, read below for details.

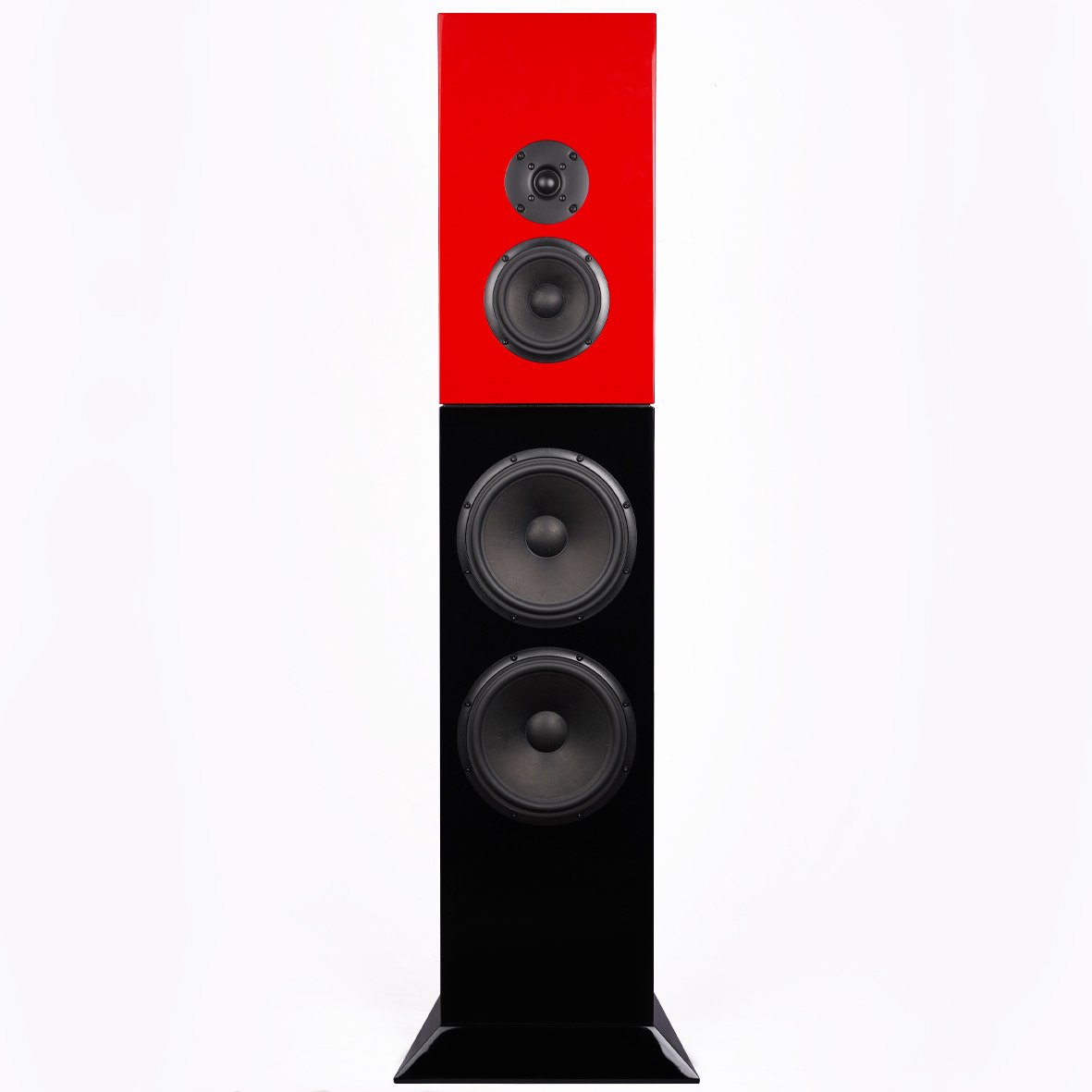

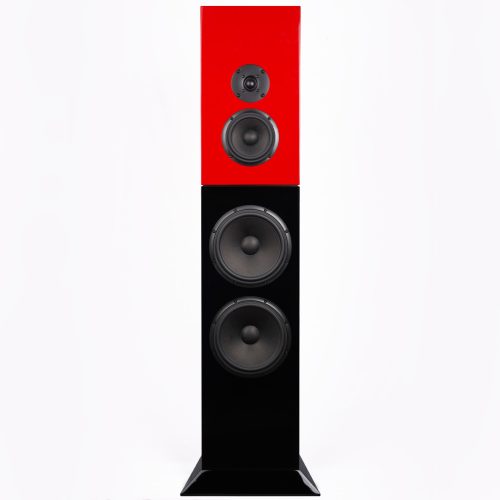

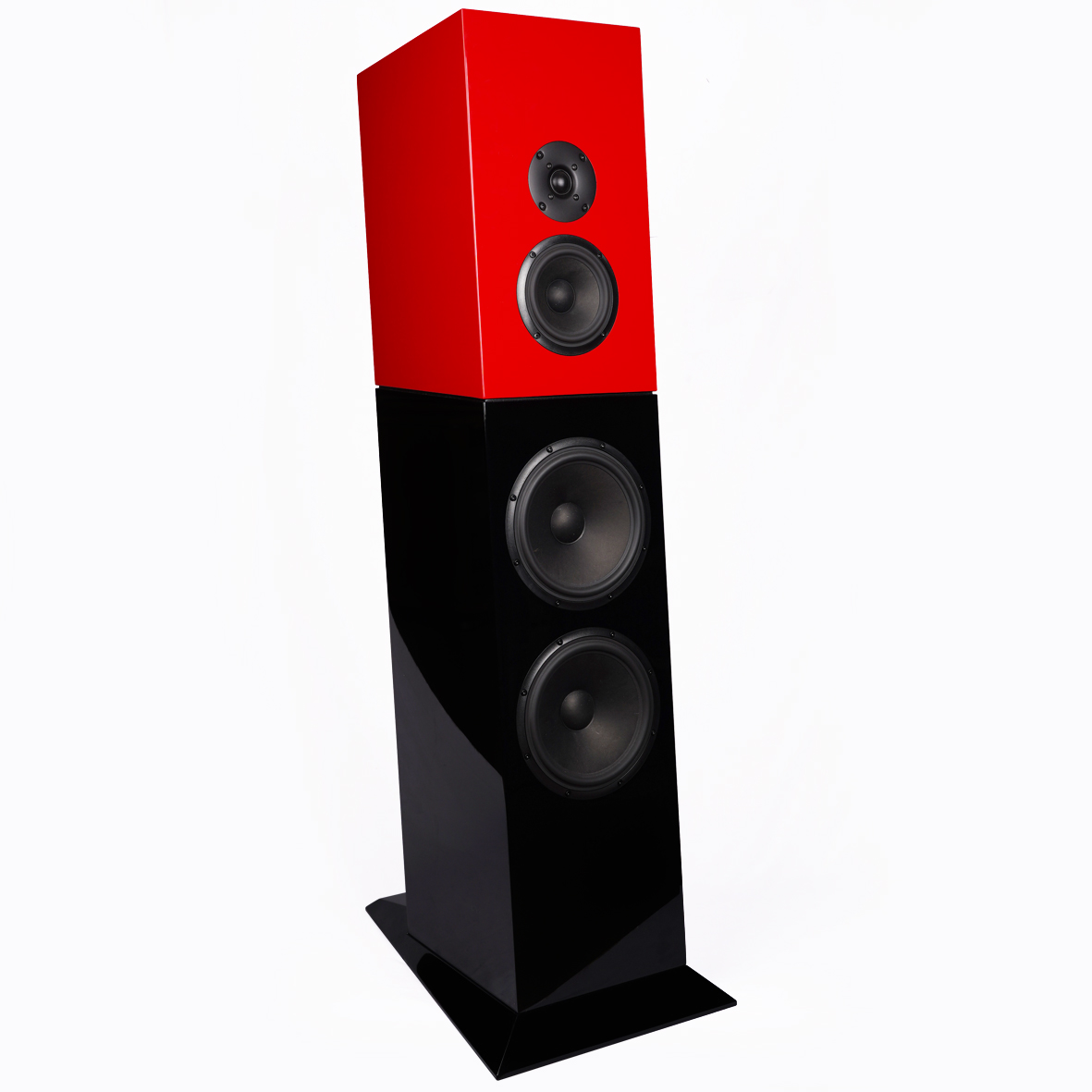

Tifa 8 is an impressive 3 way floor-standing speaker staying true to the unique Danish design language of the Tifa family. The Tifa 8 features a dedicated 6-inch natural fiber cone midrange housed in it’s own sealed midrange chamber. The highest octaves are handed off to the 26mm fine weave fabric soft dome known for it’s undistorted smooth and dynamic sound.

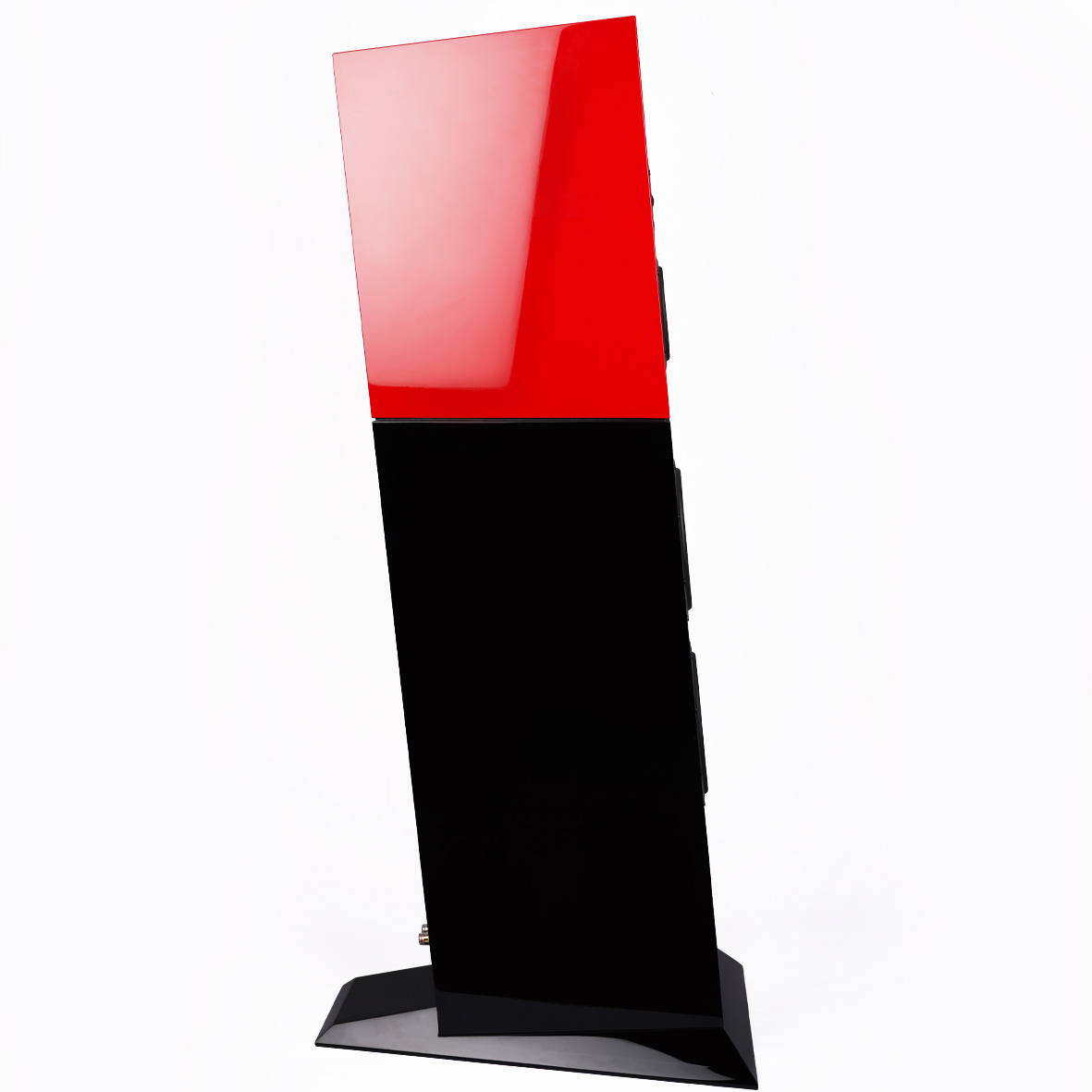

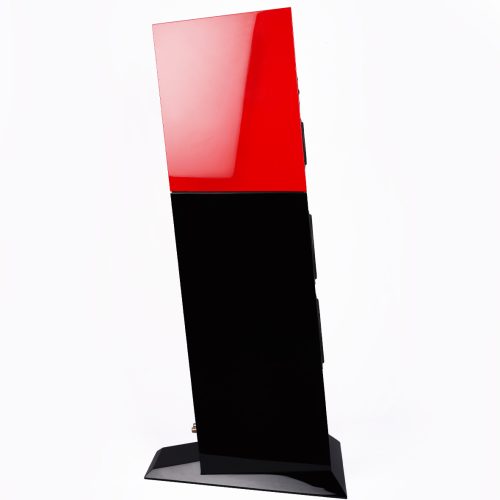

Dual 8-inch woofer anchor the lower frequencies with deep, tight bass. The Tifa inclined cabinet design optimizes driver time alignment, offering precise imaging. Crafted with precision, the robust MDF construction and strategic bracing minimize vibrations, providing a pure, uncolored listening experience.



Open Source Kit

Tifa 8 is an open source kit meaning the speaker is fully developed and documented by SB Acoustics and you are free to use the plans.

Specs

  • Frequency Range: 38 – 26000 Hz
  • Sensitivity ( 2.83V / 1m ): 87.5 dB
  • Nominal Impedance: 8Ω
  • Max SPL: 108 dB
  • Recommended Amplifier: 50 – 200 W
  • Crossover Frequency: 400/2600 Hz

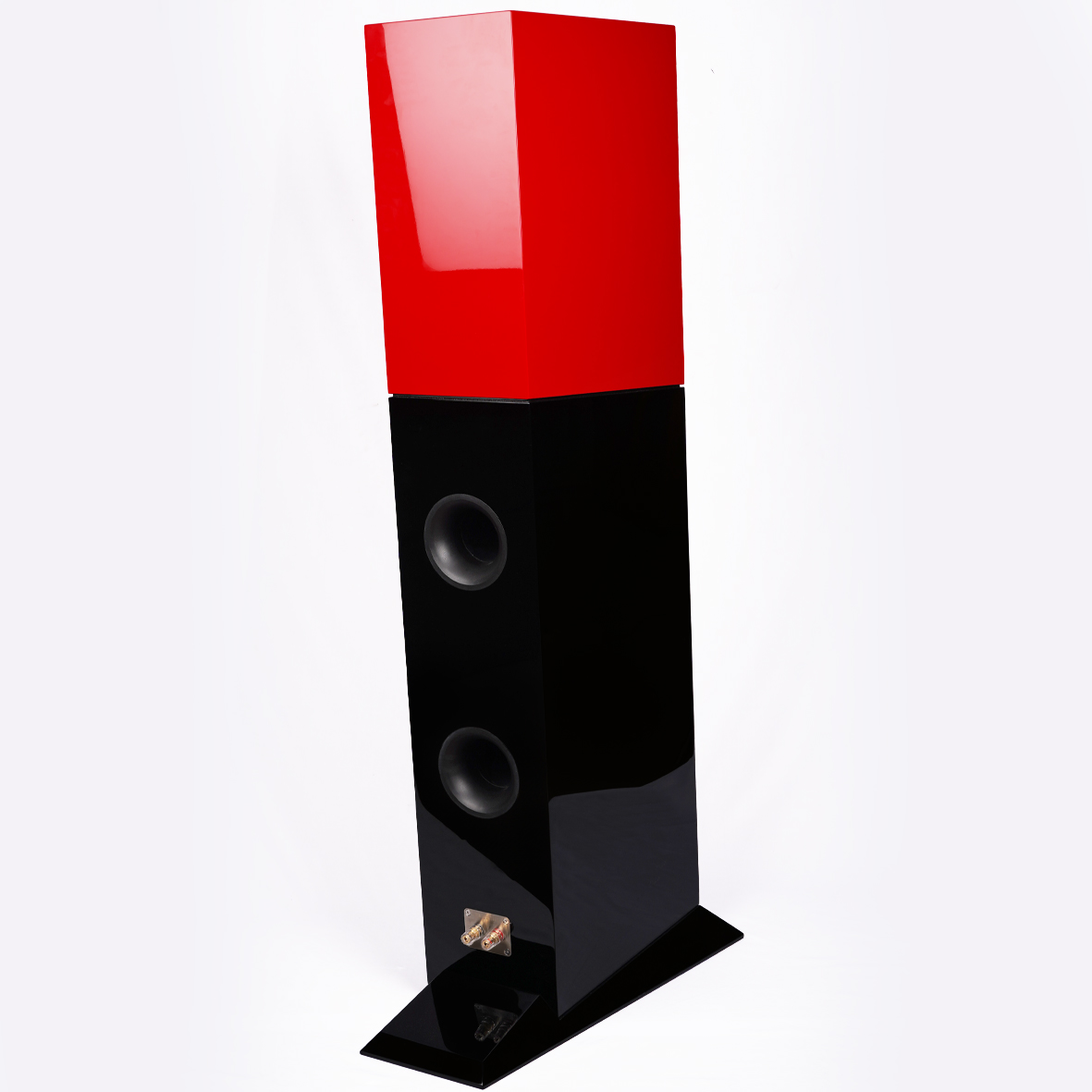

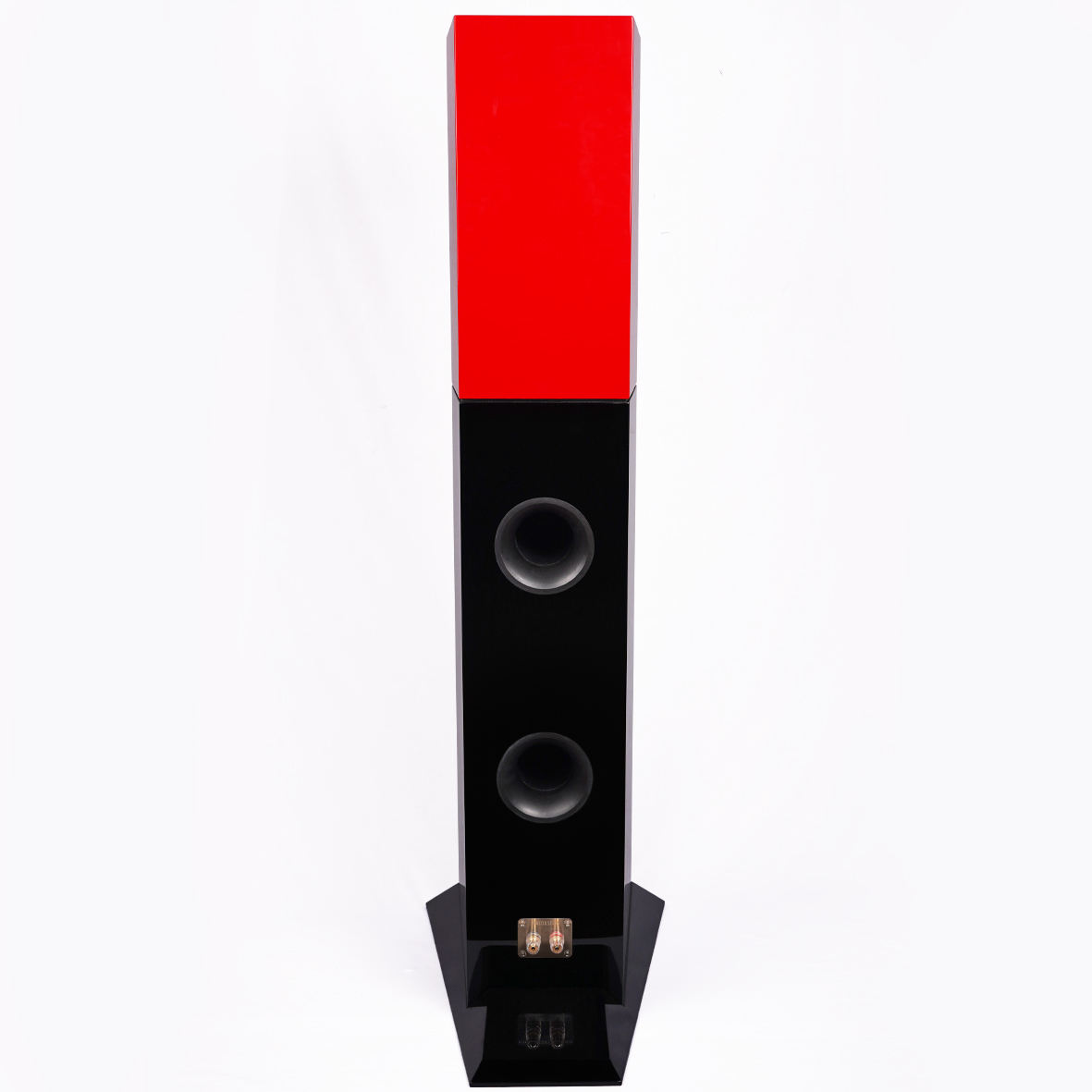

  • Enclosure Type: Bass reflex (woofer), sealed (midrange)
  • Port tuning Frequency: 40 Hz
  • Drive Units: SB26ST-C000-5, 5″ SB13PFCR25-8 & 8″ SB20PFCR30-4
