Rinjani Be

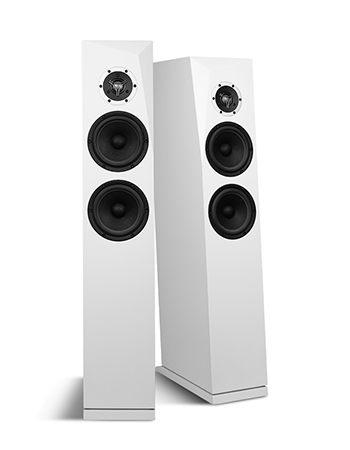

The RINJANI Be is a 2½-way floor standing speaker which takes the RINJANI performance to the highest level with the SATORI TW29BN Beryllium tweeter and revised crossover. The TW29BN has been independently announced by many as the best tweeter in the world.

Mount Rinjani is a breathtakingly beautiful active volcano on the island of lombok, Indonesia. The volcano is know to display dramatic eruptions with plumes of lava and ash. The RINJANI kit is designed to deliver transparent and dynamic sound reproduction.

The RINJANI’s faceted baffle is specially designed to reduce high frequency diffraction and yields superb imaging qualities. A further 7° reclined cabinet ensures time alignment resulting in sublime staging and pin point placement of instruments. The quality crossover lives in it’s own sealed chamber in the bottom of the speaker with a slanted divider to diminish standing waves.

The cabinet is masterfully crafted from 18 mm MDF with internal bracing to distribute cabinet vibrations and lower sound coloration. Unwanted reflections are minimized by wedge shaped inner rear walls. The RINJANI also has dual ports at the back to distribute port resonance evenly and lower compression.

For a smaller speaker with similar design goals look to the ARA and ARA Be which are the over achieving siblings of the great RINJANI

Please see Open Source Kits for TeXtreme editions.





Rinjani Be Review: SoundStage! Australia

By: Edgar Kramer – Editor In Chief

…I struggle to think of a floorstander anywhere near this price point offering a mix of such high quality drivers and which is built to this level of integrity and finish. Add to that, most importantly, the fact that Rinjani BE performs…

Read the full review here

Categories: ,

Specs

  • Frequency range: 42-30000 Hz +/-3dB
  • Sensitivity ( 2.83V/1m ): 89 dB
  • Nominal impedance: 4 Ω
  • Max SPL: 107 dB
  • Recommended amplifier: 50-200 W
  • Cross-over frequency: 2300 Hz
  • Enclosure type: Bass reflex
  • Port tuning frequency: 35.5 Hz
  • Driver units: SATORI TW29BN & 2 x 6½″ SATORI MW16P-8
  • Cabinet material: 18 mm MDF
  • Speaker dimension (HxWxD): 1010 x 190 x 464 mm ( 39.72 x 7.48 x 18.27 inch )
  • Net weight: Cabinet only 18.49 kg ( 40.76 lb ), full assy 22.42 kg ( 49.43 lb )

Finishing

  • White Satin
  • Black Satin
  • White High Gloss
  • Black High Gloss
